VSC® 80i
Intelligent Touch Screen Workstation for Forensic-Level Examination of Travel and Identity Documents
Advanced forensic-level technology, operated via a simplified touchscreen interface, the VSC80i provides a complete solution to the examination of secure travel and identity documents including passports, ID cards, visas, entry permits, and drivers licences.
- Examine and Authenticate Documents
- Identify Fakes and Counterfeits
- Decode MRZ, e-Chip and Embedded Data
- High sensitivity Vis-IR sensitive camera
- Full HD live video output
- Crystal clear imaging up to x100 magnification
- Multispectral UV/Vis/IR examination
- Automated examinations
- Removeable Transmitted Light Base
- Expanded field of view (FOV)
VSC SUITE software maximises the effectiveness of document examinations by providing the user with control of all VSC functions via a fluent quick-access toolbar.
- Perform ‘Quick Check’ automated examinations
- Multispectral fluorescence/absorption imaging mode
- Embedded data analysis
- 1D and 2D barcode analysis
- Optical Character Recognition (OCR)
- Image enhancement functions
- Casework management
VSC Microscopes
Combine the capabilities of your VSC with a microscope for magnified imaging.
Document Databases – VSC® Range
VSC/DB – Reference databases showing travel document and banknote security features.
Facial Recognition Kit – VSC® Range
VSC/FR – Includes hardware and software for facial recognition examinations.
X-RITE Colour Checker – VSC® Range
VSC/PDI/XRITE – Provides a non-subjective standard for analysing differences in colour reproduction.
eReaders – VSC® Range
VSC/eREADER – Read the electronically embedded data in identity documents.
Assure ID Sentinel – VSC® Range
VSC/ASSUREID-SENTINEL – For document authentication & verification.
LetterScreen++ Decoder – VSC® Range
V8/LS/PLUS – Software to decode data using a unique microtext wave algorithm.
IPI and ICI Decoders – VSC® Range
V8/IPI – Software to display embedded IPI and ICI on passports and ID cards.
Portable Video Microscope – VSC® Range
VSC/PVM – Compact video microscope with LED illumination for taggant examination.
Portable Video Micro Spectrometer – VSC® Range
VSC80/PVMS – Identify differences in ink and paper formulations through non-destructive spectral analysis.
Magnetic Security Feature Imager – VSC® Range
V8/MSFI/2 – Compact device for the examination and verification of magnetic security features.
Active Thermochromic Revealer – VSC® Range
VSC/ATR – For the examination of heat activated security features and inks.
Document Tilt Plate – VSC® Range
VSC/TILT – For examining OVD’s, holograms and encoded security features.
Quartz Glass Holding Plate – VSC® Range
VSC/QPLATE – Holds documents flat during examination while allowing UV illumination to pass.
Document Support Weights – VSC® Range
V6/PAPERWEIGHT – Non-marking weights for clearly imaging awkward documents.
UV Polarised Light Filter – VSC® Range
VSC/POLARISAFE – Standalone device for the visualisation of security ink.
3D Imaging Module – VSC® 80 and 900
VSC80/3D – Derive a 3D model of surface topography to analyse security features and impressions.
Forensic-Level Technology
Simply Operated

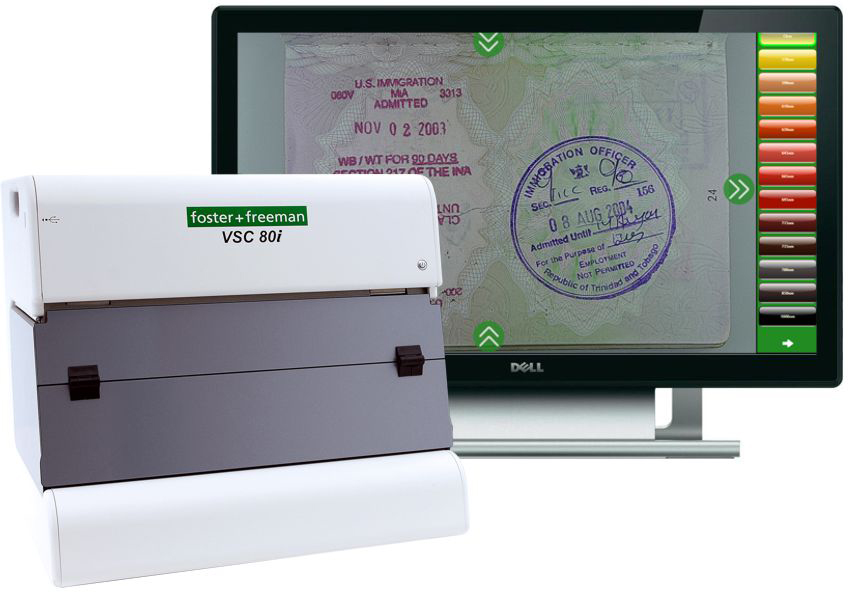

The VSC80i is operated via a new uncomplicated software interface that provides fast and intuitive access to all examination functions including illumination and filtering, camera controls, embedded data decoders, and digital image enhancement.
Designed to meet the demands of high-throughput locations such as airports and busy border control points, the VSC80i TouchScreen Interface is immediately accessible and requires little training to perform advanced ‘forensic-level’ examinations.
Fast, Effective Document Examination
Examine IR Drop-Out Inks
Decode and Detect IPI Features
Observe Documents Under UV
Hardware Options

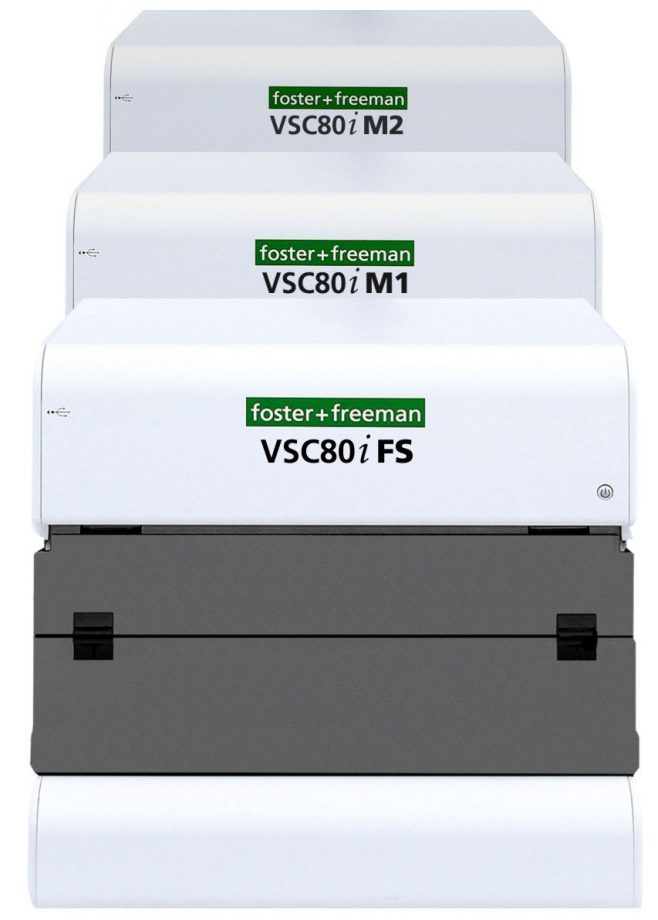

A choice of 3 VSC80i hardware variants enable the user to select a system that meets their own unique requirements:
- VSC80/i/FS Full System with Touchscreen Interface
- VSC80/i/M2 Mid-Range Touchscreen System
- VSC80/i/M1 Entry-Level Touchscreen System
Common Features
All VSC80i instruments include high-resolution imaging technology, UV-Vis-IR illumination sources, and Touch Screen Interface with easy to use software.
Accessories
Security Documents Reference Database
A reference database showing the security features in Passports, ID cards and Driving Licences from 197 countries, comprising images and data.
- Contains information on the security features of over 1,100 security documents
- Information and full-colour images of over 10,000 pages of security documents
- Archive edition and annual updates subscription available
Banknote Reference Database
A reference database showing the security features found on banknotes from over 180 countries, comprising images and data.
- Contains information and full-colour images of over 4,500 banknotes
- Archive edition and annual updates subscription available
Invisible Information (IPI and ICI) Decoder
A software plug-in to display embedded invisible information on passports and ID cards
- Uses Scrambled Indicia Technology supplied under license from Graphic Security System Corp (GSSC), USA
LetterScreen++ Decoder
LetterScreen++ verification by special algorithm based on personal data in MRZ
- Machine Readable LetterScreen++ Technology is supplied under license from Jura, Hungary
A choice of two optional ePassport readers:

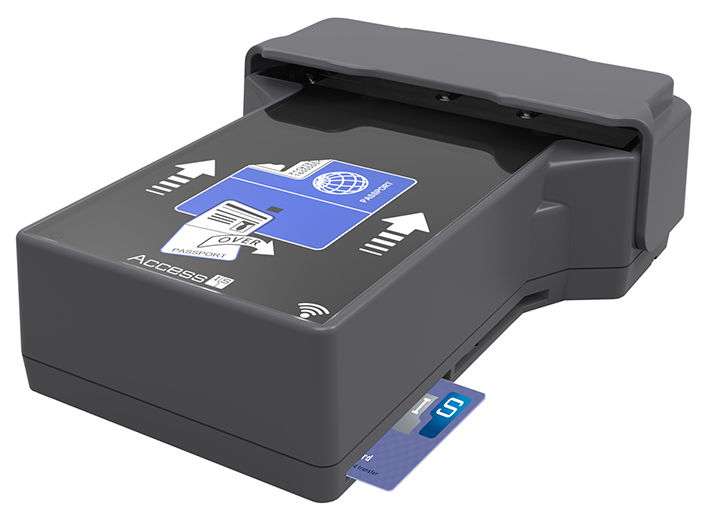

ePassport Reader 1A
- High-performance flatbed MRTD reader with contact/contactless capability

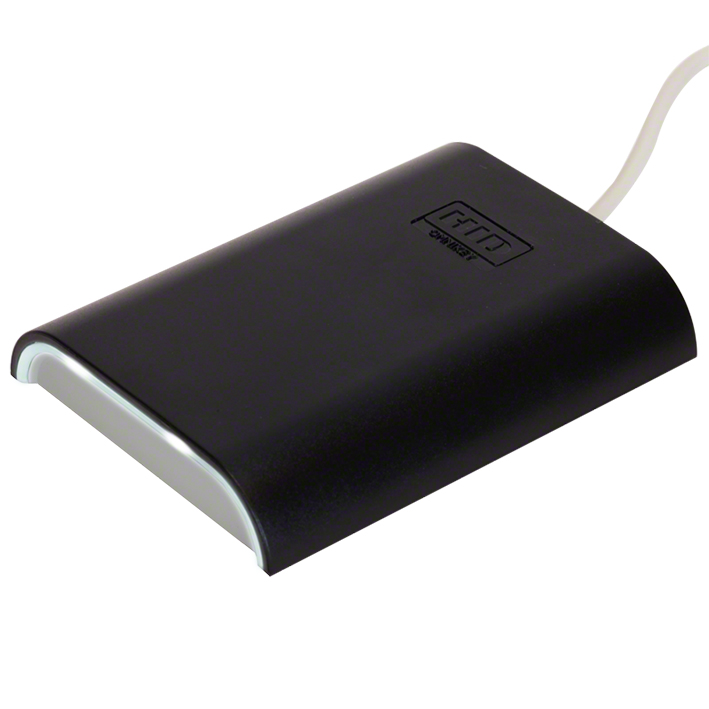

ePassport Reader 3
- Compact RFID and CARD reader with CCID and keyboard wedge interface

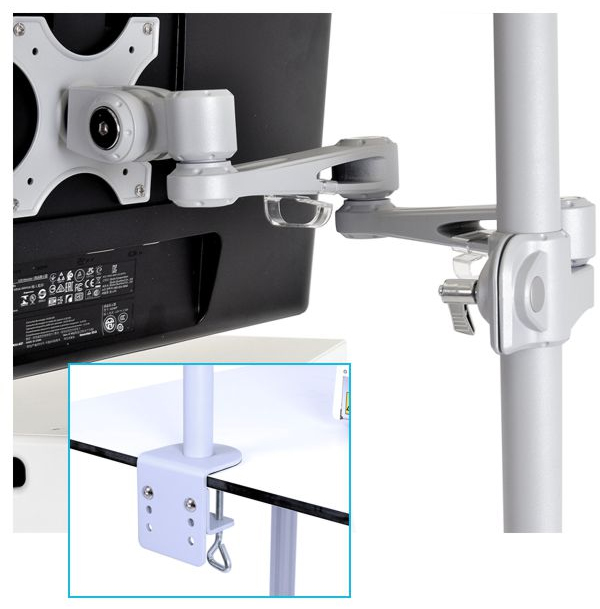

- Easy to assemble adjustable mounting arm for the VSC80i Touch Screen Interface.
- Arm extends, retracts and tilts to change the operating angle of the display

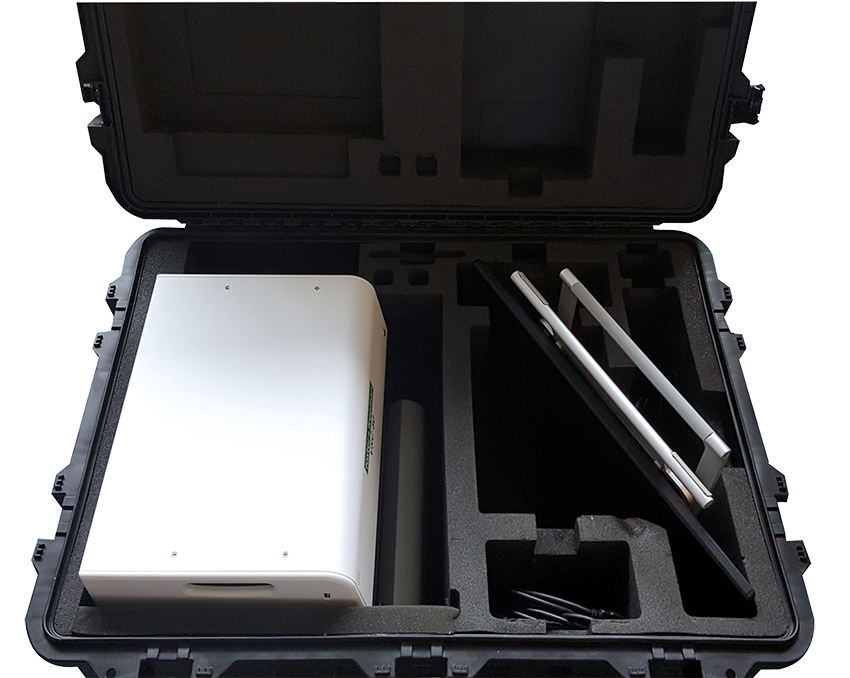

Travel case with retractable handle and wheels
