Fingermark on plastic carrier bag.
Plastic carrier bag
Fingermark on polystyrene packaging
Polystyrene packaging
Black ceramic tile
Fingermark on porcelain cup.
Porcelain cup

PolyCyano UV

The one-step fluorescent fingerprint fuming process

The foster+freeman MVC/D range of cyanoacrylate fuming cabinets and the MVC lite portable fuming systems are designed to accommodate the use of the PolyCyano UV one-stage chemical staining process.

Exclusive to foster+freeman outside of Japan, PolyCyano UV dramatically reduces fingerprint processing times by combining cyanoacrylate monomer with a fluorescent stain in a one-stage fuming process inside the cabinet.

Whilst standard Ethyl-2 Cyanoacrylate evaporates at 120°C PolyCyano UV requires further heating to 230°C. To achieve this increased evaporation temperature all Foster + Freeman MVC Cabinets now feature a dual-temperature heating unit, while older cabinets can be upgraded in the field.

Once evidence has been treated with PolyCyano UV, fingerprints can be seen to fluoresce brightly under appropriate illumination; Crime-lites are ideal for such examinations.

Shimoda Osamu（Forensic Science Laboratory, Hyogo Prefectural Police H.Q.）
Takatsu Masahisa（Forensic Science Laboratory, Hyogo Prefectural Police H.Q.）
Teranishi Hiroyoshi（Skyscience Co., Ltd.）
Ouchi Mikio（Graduate School of Engineering, University of Hyogo）

Reference literature
Jpn.J.Forensic Sci.Tech.,
14(1),21-28(2009)

The product is exclusive to foster+freeman outside of Japan. For further information on ‘Gaseous Phase Detection of Latent Fingerprint Using Polycyanoacrylate’ please view the following link: http://ci.nii.ac.jp/naid/130004942625

Request Quote
Brochure PDF

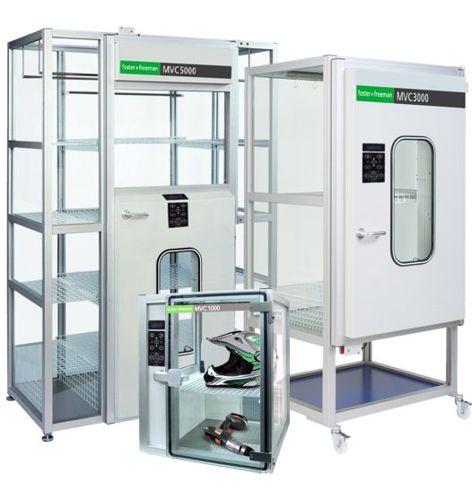

MVC/D Range

An advanced range of cyanoacrylate (superglue) fingerprint fuming cabinets

The PolyCyano UV fuming process is designed for use with our market-leading MVC/D fuming cabinets: the latest and most advanced range of systems for the development of latent fingerprints with cyanoacrylate monomer.

learn More
