fpNATURAL® Powders
IR FLUORESCENT FINGERPRINT POWDERS
Reveal high contrast fingermarks whilst suppressing background interference
Despite the vast quantity of fingerprint treatments currently available, examiners continue to be frustrated by a number of ‘difficult’ substrates.
Multi-coloured and densely patterned backgrounds, reflective metal surfaces and substrates that fluoresce at the same wavelengths as common fluorescent fingerprint treatments, can prevent the successful imaging of fingerprints. However, when dusted with fpNatural® infrared fluorescent powders, interference can be removed to reveal high contrast prints.
Inspired by Nature
Exploiting the IR fluorescent properties of plants and minerals
When seeking materials that would fluoresce in the IR, we initially took inspiration from nature, testing a wide variety of minerals and plant based powders for suitability. Excellent results were achieved using a modified blend of cyanophyta and a bright blue mineral pigment known as Egyptian Blue.
![](jpg/algae-1.jpg)
fpNATURAL® 1, a plant based fluorescent powder
Cyanophyta or cyanobacteria is a phylum of bacteria that gains its name through its blue/green colour. Often referred to as blue-green algae, there are approximately 2000 species of cyanophyta, the perfect blend of which meets all the requirements to produce an ideal IR fingerprint powder:
+ Emits bright IR fluorescence under blue/red illumination
+ Rich in IR fluorescent phycocyanin and chlorophyll
+ Non-toxic, safe to use and handle, and easily applied with a zephyr brush
fpNATURAL® 2, a mineral pigment based fluorescent powder
Egyptian Blue, also known as calcium copper silicate or cuprorivaite, is best known for its use in ancient Egyptian artwork found on statues, tomb paintings and sarcophagi. A bright blue powder, when viewed in the visible spectrum, Egyptian Blue exhibits strong Near-Infrared fluorescence when illuminated with either Visible or Near-Infrared light. The fpNATURAL® 2 blend of Egyptian Blue offers unique advantages to the fingerprint examiner:
+ Emits fluorescence under Near-IR illumination
+ Produces a significantly high quantum yield in excess of 10%
+ Ideally suited to covert applications (can be stimulated in the N-IR)

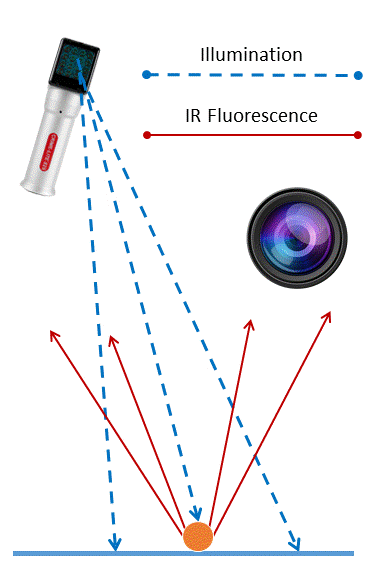

Illumination & Imaging
Entry-level and advanced IR Imaging Kits for the crime scene and forensic laboratory.
![](gif/viewing-infrared.gif)
fpNATURAL®1 Imaging Kits
fpNatural 1 is stimulated using ‘visible’ illumination in the blue or red wavebands and emits ‘invisible’ infrared fluorescence.
fpNATURAL®2 Imaging Kits
fpNatural 2 is stimulated by ‘invisible’ Near-IR illumination and emits ‘invisible’ IR fluorescence.
fpNATURAL®1 Imaging Kits
fpNatural 1 is stimulated using ‘visible’ illumination in the blue or red wavebands and emits ‘invisible’ infrared fluorescence.
fpNATURAL®2 Imaging Kits
fpNatural 2 is stimulated by ‘invisible’ Near-IR illumination and emits ‘invisible’ IR fluorescence.
Visualisation and Image Capture Kits
IR fluorescence emitted by fpNatural is not visible to the naked eye and can only be viewed via an IR sensitive camera.
Impressive Results

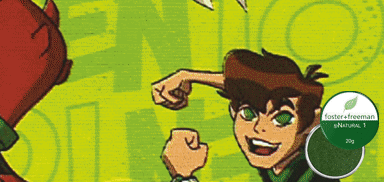

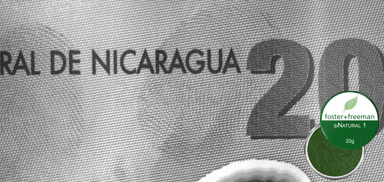

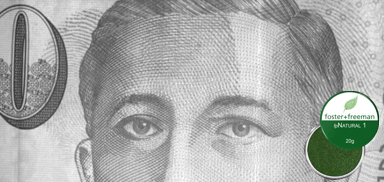

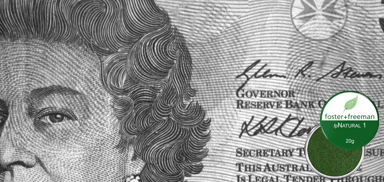

Evidence dusted with fpNATURAL®1
illuminated with Red light and viewed in the IR

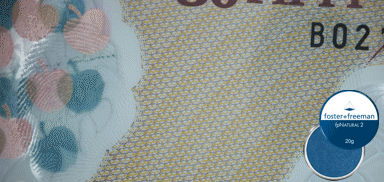

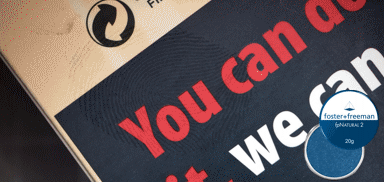

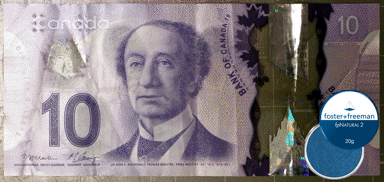

Evidence dusted with fpNATURAL®2
illuminated with N-IR light and viewed in the IR
